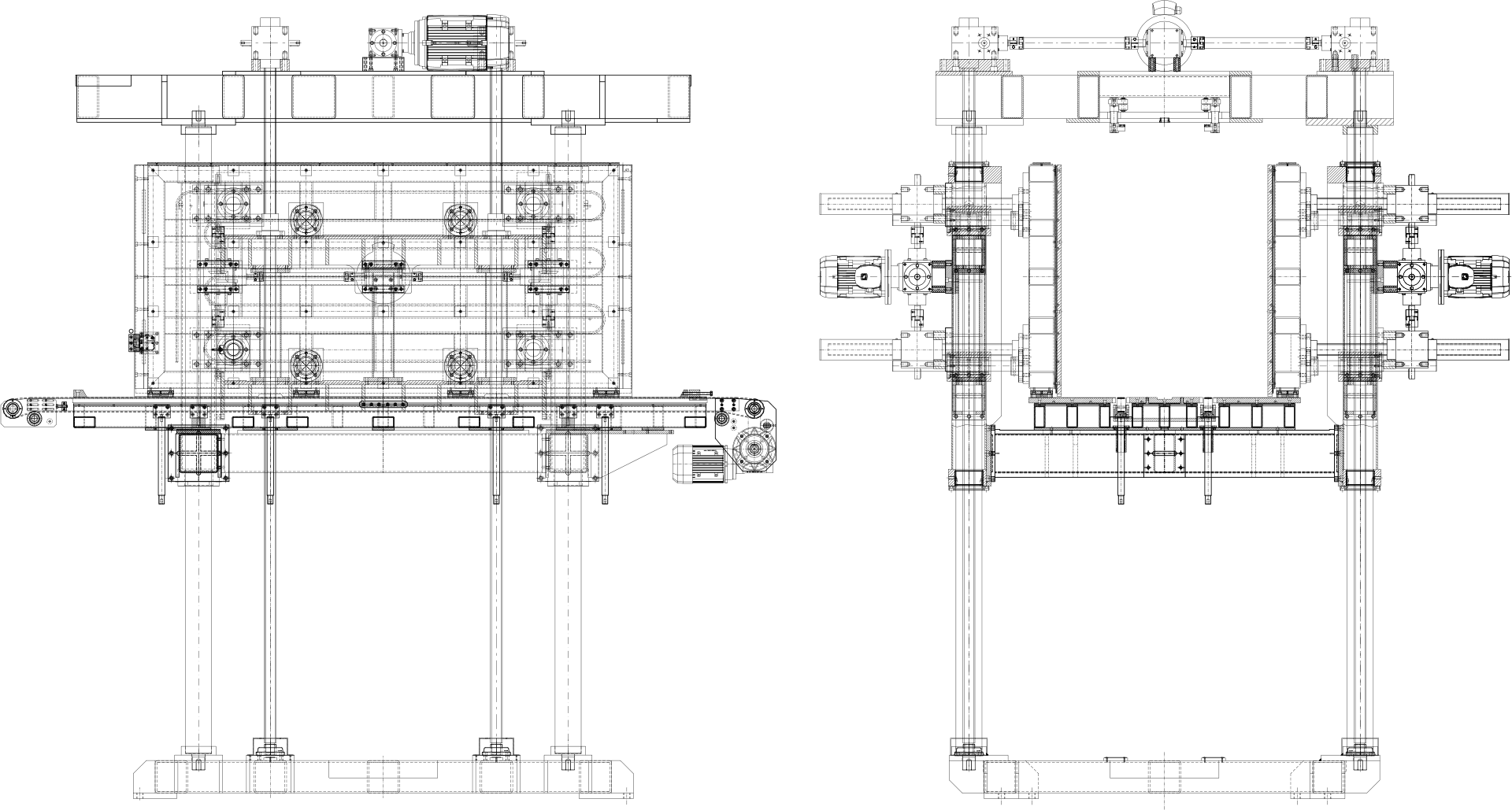

VitoPress
Automatic foaming jig
The versionable and expanding plugs can be made according to the customer's needs. The lifting can be motorised or hydraulic, while the opening of the machine is timed and automatic, the process of inserting and extracting the furniture can, on the other hand, be both automatic and manual. The walls also have a fully automatic locking system. The walls in contact with the cabinet are made of aluminum and heated through embedded copper coils. The main structure is entirely made of electro-welded steel. Finally, there is an intuitive control panel for starting and controlling the machine.
Configurations
Layout
Single
Combo
Twin
Type
Light
Lighter and smaller structure for smaller cabinets that require lower foaming pressures.
Medium
Larger structure for medium and large sized cabinets that still require relatively low foaming pressures.
verified
Ideal for medical appliancesHeavy
Overall larger and sturdier built studied for cabinets that require thicker insulation (up to 12 cm) and therefore high foaming pressures, such as medical appliances.
Lifting
Mechanical
Side walls horizontal movement
Fixed
Single
One wall moves while the other stays fixed,
with automatic or manual movement
Double
Both walls move simultaneously, with automatic
or manual movement
Side walls heating
Water
Heating
Electrical
Heating
Vertical machine movement
Rising
Cabinet
Descending
Plug
Human machine interface
Remote
Analogic
Not available with moving walls
Fully touch
Plugs
Mouth up only.
Fixed
Plugs built to fit just one specific product, they are not adjustable in any way. Perfect if you need to foam just one type of product.
